The Complete Guide to AC/DC TIG Welding
At CK Worldwide, we believe precision welding is a combination of craftsmanship and the right equipment. As a global leader in AC/DC TIG welding innovation, we’re dedicated to delivering cutting-edge torches, accessories, and equipment that help professionals work smarter, weld cleaner, and achieve consistently strong results.
Whether you're just starting with TIG welding or looking to refine your technique, understanding the roles of AC and DC current is key to producing high-quality welds. This guide walks you through everything you need to know about AC/DC TIG welding, from the science behind each current type to proper machine setup, ideal use cases, and pro-level techniques. With clear explanations and practical insights, you’ll be ready to tackle any project with confidence.
1. What Is AC/DC TIG Welding?
TIG welding (Tungsten Inert Gas welding) is known for its precision and clean welds, especially on thinner materials and non-ferrous metals. When a machine offers both AC (Alternating Current) and DC (Direct Current) options, it dramatically expands the types of metals you can weld - and how well you can weld them.
With AC/DC TIG welding, you’re not locked into one polarity or current type. Instead, you have the versatility to weld aluminum, magnesium, stainless steel, mild steel, copper, and more with just one machine.
Why It Matters
AC welding is essential for non-ferrous metals like aluminum because it provides a cleaning action that removes surface oxidation.
DC welding is better suited for steel, stainless steel, and copper due to its stable arc, deeper penetration, and cleaner bead.
For serious welders, whether in automotive, aerospace, fabrication, or DIY, having access to both current types is a game changer.
2. Understanding TIG Welding Current Types
Let’s break down how each current works in TIG welding and what it’s best suited for.
AC (Alternating Current) TIG Welding
| DC (Direct Current) TIG Welding
| DCEP (Direct Current Electrode Positive)
|
Knowing the difference between AC and DC, and when to use each, helps prevent poor fusion, contamination, or surface defects.
3. Key Machine Settings for AC/DC TIG Welding
Whether you're welding aluminum on AC or stainless steel on DC, mastering your machine settings is key to producing strong, clean welds.
AC Settings:
- AC Balance: Adjusts the ratio of cleaning action (EP) to penetration (EN).
More EP = better cleaning, but can overheat tungsten.
More EN = deeper penetration, but risks leaving oxide.
- AC Frequency: Controls the arc width.
Higher frequency (100–250 Hz) creates a narrow, focused arc - ideal for precision welding.
Lower frequency (60 Hz) gives a wider arc and more cleaning action.
DC Settings:
Amperage Control: Varies by material thickness—thinner metals need less heat.
- Start Method: Most machines offer High Frequency (HF) start, Lift Start, or Scratch Start.
HF Start is best for clean, non-contact arc initiation.
Pulse Settings (Optional): Helps control heat input and avoid burn-through on thin metals.
Having control over these variables allows you to fine-tune for every material, joint type, and position.
4. When to Use AC vs. DC TIG Welding
Choosing the right current is fundamental to TIG welding success. While some metals can tolerate both AC and DC, knowing which to use (and when) makes all the difference in weld quality and efficiency.
When to Use AC TIG Welding
Materials: Aluminum, magnesium, and other non-ferrous metals.
- Why AC Works: These metals form a tough oxide layer (e.g., aluminum oxide) that has a much higher melting point than the base metal.
The positive half of the AC cycle provides a “cleaning action” that blasts away oxides.
The negative half penetrates into the base metal.
Best For:
Welding aluminum boat hulls, bike frames, engine components, and sheet aluminum.
Applications where surface oxidation is a concern
When to Use DC TIG Welding
Materials: Mild steel, stainless steel, copper, brass, titanium, and chrome-moly.
Why DC Works: The current flows in one direction, offering a steady arc, deeper penetration, and cleaner weld bead.
Best For:
Precision welding of steel components.
Aerospace, automotive fabrication, stainless kitchen equipment, and structural tubing.
Quick Reference Table
Material | Recommended Current |
Aluminum | AC |
Magnesium | AC |
Stainless Steel | DCEN |
Mild Steel | DCEN |
Copper/Brass | DCEN |
5. Choosing the Right AC/DC TIG Welder
Not all TIG welders are created equal, especially when it comes to AC/DC capabilities. If you're working with a range of metals, investing in a dual-current machine is essential. Here's what to look for.
1. AC/DC Capability
Confirm the machine explicitly supports both AC and DC TIG welding.
Some cheaper machines are DC-only, which means no aluminum welding.
2. Amperage Range
- Look for a wide amperage range (e.g 5–200 amps or higher).
Lower amps for thin materials (like sheet metal).
Higher amps for thicker sections (up to 1/4" and beyond).
3. AC Balance & Frequency Controls
- High-end TIG welders allow fine-tuning of:
AC balance (cleaning vs. penetration).
AC frequency (arc width and stability).
These features are critical for high-quality aluminum welds.
4. Pulse TIG Capabilities
Useful for heat-sensitive materials like stainless steel or thin-gauge aluminum.
Pulsing allows better heat control and less warping.
5. Foot Pedal or Fingertip Control
Precision control over amperage during welding is a must.
Foot pedals are ideal for bench work, while fingertip controls are great for mobile/field work.
6. Duty Cycle
- Indicates how long the machine can run before needing to cool.
Look for at least a 60% duty cycle at moderate amps for professional or production work.
7. Brand Reputation & Support
Go with a trusted brand known for AC/DC performance.
Support, warranty, and parts availability matter.
CK Worldwide manufactures high-performance AC/DC TIG welding machines designed for professionals. Some top options include:

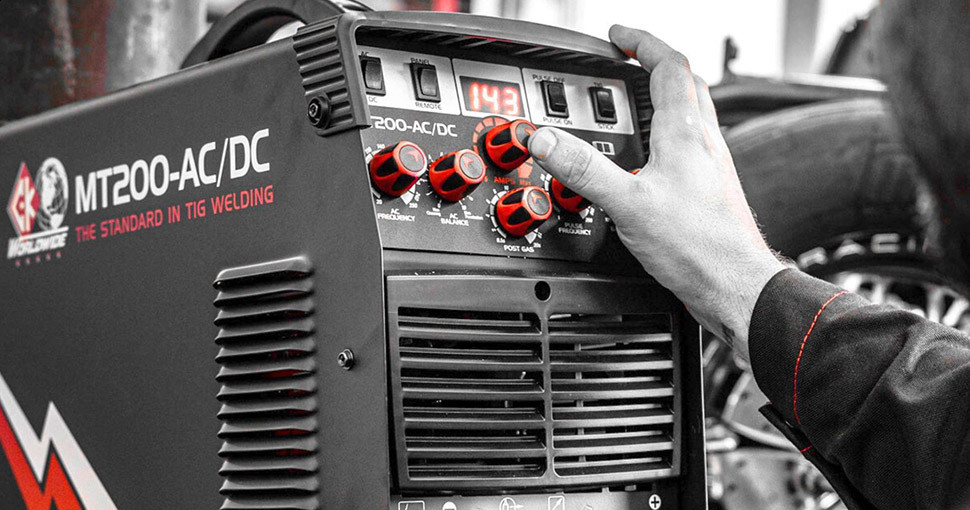

MT200 ACDC: A versatile 200-amp TIG welder with AC/DC capability, perfect for welding steel, stainless steel, and aluminum.
MT375 ACDC: A powerful 375-amp TIG welder designed for heavy-duty applications and industrial use.
6. Electrode Selection for AC/DC TIG Welding
Tungsten electrodes are a critical part of TIG welding - and choosing the right type for AC or DC applications will directly affect arc stability, weld quality, and ease of use.
Tungsten Types and Their Uses
Type | Color Code | Best For | Current Type |
Pure (EWP) | Green | Aluminum (older machines) | AC |
Thoriated (EWTh-2) | Red | Steel, stainless, copper | DC |
Lanthanated (EWLa-1.5) | Gold | Aluminum, steel, stainless | AC & DC |
Ceriated (EWCe-2) | Grey | Low-amp precision welding | AC & DC |
Rare Earth / Multi-Mix | Varies | Versatile, long-lasting | AC & DC |
AC-Specific Tips
For modern machines with AC balance and frequency control, lanthanated tungsten is often preferred over pure tungsten.
Sharpen to a rounded tip - the arc will naturally form a ball during welding.
Avoid using thoriated tungsten on AC - it's less stable and not designed for cleaning action.
DC-Specific Tips
Use a sharpened point on thoriated or lanthanated tungsten.
Keep the grind marks lengthwise to promote a focused, stable arc.
Thoriated tungsten provides excellent arc starts and performance on steel and stainless.
Tungsten Diameter Recommendations
1/16” (1.6mm): Good for light work (up to 100 amps).
3/32” (2.4mm): Most common for general-purpose TIG.
1/8” (3.2mm): For high-amp welding or thick materials.
Proper tungsten selection ensures arc stability, cleaner starts, and more control - especially when switching between AC and DC processes.
7. Torch Setup and Polarity Settings
Setting up your torch correctly for either AC or DC TIG welding is essential. Your polarity setting, shielding gas flow, and torch cooling configuration will all vary depending on the material and process.
Polarity Settings
Material | Polarity Setting | Notes |
Aluminum (AC) | AC | Enables cleaning action on oxide layer |
Steel (DCEN) | DC Electrode Negative | Deeper penetration, stable arc |
Don’t Use DCEP | — | Too hot for tungsten, unstable arc |
Key Tip: Always double-check the polarity setting before welding. Using the wrong polarity can damage your electrode or lead to poor weld quality.
Torch Configuration
- Air-Cooled vs. Water-Cooled
Air-cooled torches are fine for lighter jobs or mobile work under 200 amps.
Water-cooled torches are necessary for high-amp, long-duration welds - especially in aluminum.
- Collets, Collet Bodies, and Cups
Use the correct size collet and tungsten for your amperage range.
Consider gas lenses for improved shielding gas coverage - especially important with AC welding on aluminum.
Shielding Gas Considerations
100% Argon is standard for both AC and DC TIG.
- Flow Rate:
Typical: 15–20 CFH
Increase flow slightly for larger cups or if using a gas lens.
Avoid drafty environments - even a slight breeze can disturb gas coverage and cause oxidation or porosity.
8. AC/DC TIG Welding Techniques
Mastering TIG welding means adapting your technique based on whether you’re using AC or DC current. While both methods rely on precision and control, they require different approaches depending on the material, polarity, and weld goals.
AC Welding Techniques (Ideal for Aluminum & Magnesium)
Control the Cleaning Action
Use your machine’s AC balance setting to fine-tune the amount of oxide cleaning (EP) vs. penetration (EN).
More Electrode Positive (EP) = better cleaning, but more heat on the tungsten.
More Electrode Negative (EN) = deeper penetration, but less cleaning.
Use a Smooth, Steady Torch Movement
Aluminum has a narrower temperature window - too much heat and it puddles quickly.
Move smoothly and don’t pause too long, especially on thin materials.
Watch the Puddle
Aluminum’s puddle can be harder to read than steel’s.
A shiny, fluid puddle = ready for filler. A dull surface means the base hasn’t fully melted yet.
Tip: Preheat thicker aluminum to reduce distortion and improve fusion.
DC Welding Techniques (Perfect for Steel, Stainless Steel, Copper)
Sharper Tungsten = Focused Arc
Keep your tungsten tip sharp for a narrow, concentrated arc.
Helps with precision, especially on thinner or intricate welds.
Push vs. Pull Technique
In TIG welding, always push the torch (don’t drag).
Angle the torch about 10–15° in the direction of travel.
Add Filler Methodically
Dip the filler rod into the leading edge of the puddle - not directly into the arc.
Keep a rhythmic motion - “dab-dab-dab” in time with your torch movement.
Use Pulse Mode (if available)
Great for stainless steel or thin metals - helps control heat input and avoid distortion.
Mastering both AC and DC techniques lets you handle a wide range of metals and applications with precision and confidence.
9. Troubleshooting AC/DC TIG Welding Issues
Even with the right setup and experience, TIG welding can throw you a few curveballs. Here’s how to diagnose and fix the most common problems that occur in both AC and DC modes.
Contaminated Welds
Symptoms: Black soot, porosity, or poor bead appearance.
Causes: Dirty base metal, poor gas coverage, or contaminated tungsten.
Fixes:
Clean base metal thoroughly with a stainless steel brush or acetone.
Check for gas leaks or low gas flow.
Replace or regrind contaminated tungsten.
Arc Wandering or Unstable Arc
Symptoms: Arc dances or strays from the weld path.
Causes: Blunt or uneven tungsten tip, improper gas flow, magnetic interference (DC).
Fixes:
Sharpen tungsten properly - grind lengthwise.
Ensure steady gas flow (typically 15–20 CFH).
For DC, avoid welding near strong magnets or ferromagnetic materials.
Electrode Overheating or Tip Melting (AC Mode)
Symptoms: Balling too large or melting of tungsten tip.
Causes: Too much EP in AC balance, high amperage, or incorrect tungsten.
Fixes:
Adjust AC balance to favor more EN.
Use a larger tungsten diameter.
Switch to lanthanated instead of pure tungsten for better heat tolerance.
Porosity in Welds
Symptoms: Small holes or bubbles in the weld bead.
Causes: Contaminated base/filler metal, poor shielding gas coverage.
Fixes:
Use clean, dry filler rods and clean base metal.
Check for leaks in your gas line and use a gas lens if necessary.
Difficulty Starting Arc (Especially on Aluminum)
Symptoms: Arc won’t initiate, or high-frequency start is inconsistent.
Causes: Dirty tungsten, incorrect machine settings, poor work clamp connection.
Fixes:
Clean and sharpen tungsten.
Confirm AC settings are correct (start frequency, balance, amperage).
Ensure solid ground clamp contact on clean metal.
Troubleshooting is part of the learning curve. Over time, you'll develop an instinct for spotting and fixing issues before they ruin your weld.
10. Essential Accessories for AC/DC TIG Welding
To get the most out of your AC/DC TIG welding setup, having the right accessories is key. These tools not only improve performance but also make your workflow more efficient, accurate, and comfortable.
Gas Lenses and Cups
Why it matters: Ensures smooth, laminar gas flow for better shielding - especially critical in stainless steel and aluminum welding.
Tip: Use a gas lens with a larger cup for wider coverage and less turbulence in AC mode.
Foot Pedal or Fingertip Control
Why it matters: Fine-tuned amperage control on the fly allows you to adjust heat input in real time.
AC welding benefit: Helps you back off heat quickly to avoid blowing through aluminum.
Dedicated Tungsten Grinder
Why it matters: Consistent tip geometry leads to better arc starts and stability, especially important when switching between AC and DC.
Avoid contamination: Don't use general bench grinders—use one specifically for tungsten.
Water Cooler System
Why it matters: AC welding, especially on thick aluminum, runs hot. Water-cooled torches prevent overheating and increase comfort during long sessions.
High-Quality Filler Rods
Why it matters: Clean, properly stored filler rods prevent porosity and contamination in your welds.
Tip: Match rod type to your base metal (ER4043 or ER5356 for aluminum, ER70S-2 for mild steel, ER308L for stainless).
Welding Cart or Workstation
Why it matters: Keeps your AC/DC TIG welder, cylinders, torches, and accessories organized and mobile for easy use and maintenance.
Equipping your shop with the right accessories ensures your TIG welding setup runs smoothly, safely, and at full potential - no matter the material or mode you're working in.
Final Thoughts: Mastering the Art of AC/DC TIG Welding
AC/DC TIG welding opens up a world of precision and versatility, allowing you to tackle everything from delicate aluminum sheet to thick carbon steel plate. Understanding when to use alternating current vs direct current - and how to fine-tune each for specific materials - is the foundation of great TIG work.
By learning:
How AC and DC polarities affect arc behavior,
Which metals require which current type,
How to adjust machine settings for perfect penetration or cleaning action, and
How to troubleshoot common issues...
...you'll become not just a better welder, but a more confident and consistent one.
Whether you're building aerospace components or a custom motorcycle frame, your knowledge of AC/DC TIG will help you achieve cleaner welds, better control, and professional-level results.
Explore our full range of AC/DC TIG welding equipment and accessories at CK Worldwide’s website and weld with confidence.
Keep practicing, keep refining, and always weld smart.
