PAQUETS DE TUNGSTÈNE / INFORMATIONS DE COMMANDE
- 7 Variétés d’électrodes premium
- Disponible en pack de 10 ou pack de 3

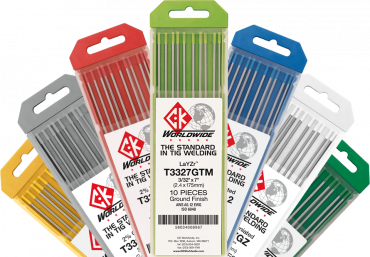

Ci-dessous, vous trouverez les informations de commande pour les 7 variétés premium d’électrodes au tungstène que nous proposons.
| ÉLECTRODES EN TUNGSTÈNE | ||||
| ISO 6848 CODE COULEUR | TAILLE | RÉFÉRENCE | ||
| POUCES | MILLIMÈTRES | 10 PIÈCES | 3 PIÈCES P.O.P | |
| 2 % Thorium | .020 X 7" | 0,5 X 175mm | T0207GT2 | |
| .040 X 7" | 1,0 X 175mm | T0407GT2 | ||
| Rouge | 1/16 X 7" | 1,6 X 175mm | T1167GT2 | T1167GT2-3 |
| TUNGSTEN ELECTRODES | ||||
| ISO 6848 COLOR CHART |
SIZE | PART # | ||
| INCHES | MILLIMETERS | 10 PIECE | 3 PIECE P.O.P | |
| 2% Thoriated |
.020 X 7" | 0.5 X 175mm | T0207GT2 | |
| .040 X 7" | 1.0 X 175mm | T0407GT2 | ||
| Red | 1/16 X 7" | 1.6 X 175mm | T1167GT2 | T1167GT2-3 |
| AWS A5.12 EWTh-2 ISO 6848 WT20 |
3/32 X 7" | 2.4 X 175mm | T3327GT2 | T3327GT2-3 |
| 1/8 X 7" | 3.2 X 175mm | T187GT2 | T187GT2-3 | |
| 5/32 X 7" | 4.0 X 175mm | T5327GT2 | ||
| .8% Zirconiated |
.020 X 7" | 0.5 X 175mm | T0207GZ | |
| .040 X 7" | 1.0 X 175mm | T0407GZ | ||
| White | 1/16 X 7" | 1.6 X 175mm | T1167GZ | T1167GZ-3 |
| AWS A5. 12 EWZr-8 ISO 6848 WT8 |
3/32 X 7" | 2.4 X 175mm | T3327GZ | T3327GZ-3 |
| 1/8 X 7" | 3.2 X 175mm | T187GZ | T187GZ-3 | |
| 5/32 X 7" | 4.0 X 175mm | T5327GZ | ||
| 1.5% Lanthanated |
.020 X 7" | 0.5 X 175mm | T0207GL | |
| .040 X 7" | 1.0 X 175mm | T0407GL | ||
| Gold | 1/16 X 7" | 1.6 X 175mm | T1167GL | T1167GL-3 |
| AWS A5.12 EWLa-1.5 ISO 6848 WT15 |
3/32 X 7" | 2.4 X 175mm | T3327GL | T3327GL-3 |
| 1/8 X 7" | 3.2 X 175mm | T187GL | T187GL-3 | |
| 5/32 X 7" | 4.0 X 175mm | T5327GL | ||
| 2% Ceriated |
.020 X 7" | 0.5 X 175mm | T0207GC2 | |
| .040 X 7" | 1.0 X 175mm | T0407GC2 | ||
| Grey | 1/16 X 7" | 1.6 X 175mm | T1167GC2 | T1167GC2-3 |
| AWS A5.12 EWCe-2 ISO 6848 WC20 (Formerly Orange) |
3/32 X 7" | 2.4 X 175mm | T3327GC2 | T3327GC2-3 |
| 1/8 X 7" | 3.2 X 175mm | T187GC2 | T187GC2-3 | |
| 5/32 X 7" | 4.0 X 175mm | T5327GC2 | ||
| Pure |
.020 X 7" | 0.5 X 175mm | T0207G | |
| .040 X 7" | 1.0 X 175mm | T0407G | ||
| Green | 1/16 X 7" | 1.6 X 175mm | T1167G | T1167G-3 |
| A5. 12 EWP ISO 6848 WP |
3/32 X 7" | 2.4 X 175mm | T3327G | T3327G-3 |
| 1/8 X 7" | 3.2 X 175mm | T187G | T187G-3 | |
| 5/32 X 7" | 4.0 X 175mm | T5327G | ||
2% Lanthanated |
.020 X 7" | 0.5 X 175mm | T0207GL2 | |
| .040 X 7" | 1.0 X 175mm | T0407GL2 | ||
| Blue | 1/16 X 7" | 1.6 X 175mm | T1167GL2 | T1167GL2-3 |
| AWS A5.12 EWLa-2 ISO 6848 WL20 |
3/32 X 7" | 2.4 X 175mm | T3327GL2 | T3327GL2-3 |
| 1/8 X 7" | 3.2 X 175mm | T187GL2 | T187GL2-3 | |
| 5/32 X 7" | 4.0 X 175mm | T5327GL2 | ||

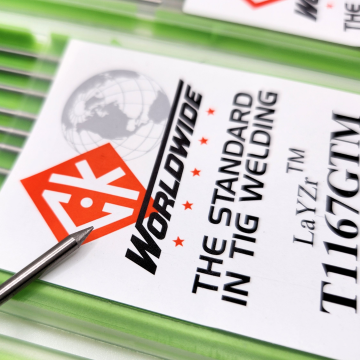

LaYZr™ (Lanthanated, Yttrium, and Zirconiated Blend) |
.020 X 7" | 0.5 X 175mm | T0207GTM | |
| .040 X 7" | 1.0 X 175mm | T0407GTM | ||
| Chartreuse | 1/16 X 7" | 1.6 X 175mm | T1167GTM | T1167GTM-3 |
| AWS A5.12 EWG ISO 6848 |
3/32 X 7" | 2.4 X 175mm | T3327GTM | T3327GTM-3 |
| 1/8 X 7" | 3.2 X 175mm | T187GTM | T187GTM-3 | |
| 5/32 X 7" | 4.0 X 175mm | T5327GTM | ||
How To Sharpen Your New Tungsten Electrodes
Tungsten electrodes are the foundation of high-quality TIG welding, playing a critical role in arc stability, penetration, and overall weld performance. Choosing the right tungsten and ensuring proper sharpening techniques can make all the difference in achieving clean, consistent welds. At CK Worldwide, we offer industry-leading tungsten solutions, from premium tungsten electrodes to precision grinding tools that help you master your craft.
Mastering Tungsten Sharpening for Optimal Arc Control
Sharpening your tungsten electrode correctly enhances arc precision and minimizes contamination. The grind angle significantly impacts how the arc behaves, influencing penetration depth and weld bead consistency. Here’s a breakdown of recommended grind angles:
- 25° – Wider Arc Spread: Ideal for surface work and thin materials, providing a controlled arc with minimal penetration.
- 35° – Balanced Arc: The best all-around choice, offering stability, depth, and precision for various metals.
- 45° – Penetrating Arc: Ideal for structural welding, stainless steel, and aluminum, delivering a narrow, high-energy arc for strength and consistency.
Turbo-Sharp X Tungsten Grinder – Precision Sharpening Made Easy
For precise and repeatable tungsten sharpening, look to the Turbo-Sharp X:
- Adjustable grinding head from 20° to 60° for custom arc control.
- Diamond discs last 3X longer than standard options for increased durability.
- Compact and efficient for shop or field use, ensuring clean, repeatable tungsten grinds.
- Minimizes arc wander and improves arc stability for superior weld quality.
- Ideal for welders who require consistent tungsten sharpening and precision welding
TIG welding success starts with the right tungsten electrodes and sharpening tools. By using CK Worldwide tungsten solutions and precision grinders like the Turbo-Sharp X, you ensure clean starts, controlled arcs, and stronger welds.
Explore our full range of tungsten electrodes and sharpening tools today to take your welding to the next level.
